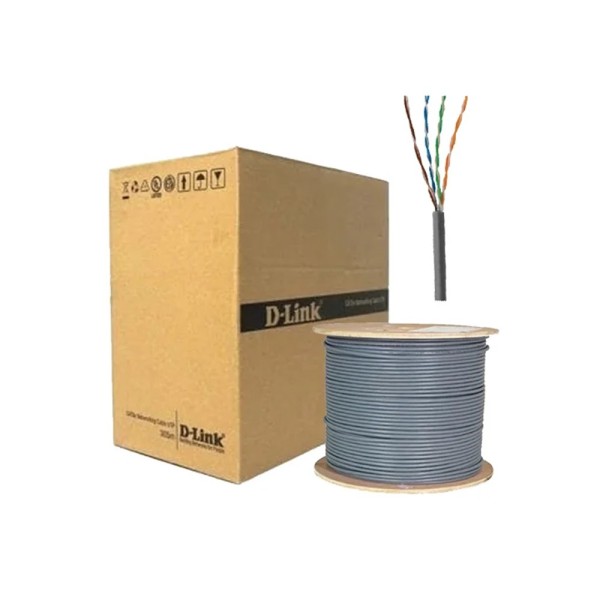

D-Link NCB-C6UGRYR-305 Cat6 23AWG UTP Cable 305m Grey

D-Link NCB-C6UGRYR-305 Cat6 23AWG UTP Cable 305m Grey Price in Bangladesh

Want to know the D-Link Cat6 23AWG UTP Cable 305m price in Bangladesh? The D-Link NCB-C6UGRYR-305 is a full 305 metre roll of grey Cat6 network cable with solid copper wires. It is made for fixed indoor cabling.

It suits installers, ISP technicians and businesses wiring a floor. It also helps home owners who want wired rooms. You can check the D-Link Cat6 23AWG UTP Cable 305m price in Thakurgaon on this same page.

Before you order, measure your runs and add spare length. Plan where the switch, router and wall outlets will sit. Also confirm you have Cat6 RJ45 connectors or keystone jacks that accept 23 AWG wire.

Top Highlights

• Thick 23 AWG: Solid bare copper conductors carry signals with low loss.
• Full 305m Roll: One pull box covers many rooms and floors.
• Gigabit Ready: Supports 1000BASE-T Ethernet with 250MHz Cat6 bandwidth.
• Verified Standards: ETL verified to EIA/TIA and cUL listed.

About the D-Link NCB-C6UGRYR-305 Cat6 23AWG UTP Cable 305m Grey

Why 23 AWG Matters

AWG is a wire size number, and a smaller number means a thicker wire. This cable uses 23 AWG solid copper, which is thicker than the common 24 AWG type. Thicker copper keeps the signal stronger over long runs between your switch and a far room.

Four Pairs With a Cross Separator

Inside the grey jacket are four twisted pairs of wire. A PE plastic cross sits in the middle and keeps each pair apart. This reduces crosstalk, which is noise that one pair can leak into the next.

Bare Copper, Not Coated Metal

The conductors are bare copper, not copper-clad aluminium. Pure copper wire bends without breaking easily and holds a punch-down well. It also keeps the resistance low, so long links stay stable.

Design & Performance

Design and Build

The cable has an outer diameter of about 6.0 mm, with a tolerance of 0.2 mm. The insulation on each wire is HD-PE, a dense plastic that keeps the pairs consistent. The PVC jacket has a hardness of 45P, about 90A on the Shore scale.

The jacket is rated to handle at least 75°C of heat. That helps inside warm ceilings and walls. The roll comes in a pull box, so you can draw the cable out without tangles.

Performance in Daily Use

Cat6 cable runs at 250MHz and supports Gigabit Ethernet. That means a properly installed link can carry 1000 Mbps for file transfers, IP cameras and video calls. A wired link also avoids common Wi-Fi drops.

Real speed depends on good termination and the quality of your connectors. Keep each permanent link within the standard 100 metre Ethernet limit. If your Wi-Fi is weak in some rooms, our guide on fixing slow Wi-Fi at home explains when a cable run is the better fix.

Who It's For

Network Installers and ISPs

Technicians who wire buildings every week need a full roll, not short pieces. This 305 metre box lets you finish several rooms from one stock. Local ISPs can pair it with the right core router, as covered in our MikroTik router guide for ISPs.

Offices and Small Businesses

An office can connect desktops, printers, access points and a server with the same cable type. Labelled grey runs look neat in trunking and are easy to trace later. A stable wired network keeps billing software and shared folders working through the day.

Homes With Many Rooms

A multi-storey house often has dead zones where Wi-Fi cannot reach. You can run cable from the main router to a second access point upstairs. Smart TVs and gaming consoles also perform better on a wired port.

Simple Buying Guide

Choose the Right Wire Gauge

Pick 23 AWG for longer runs and for jobs where you want extra signal margin. Choose 24 AWG if you need a slightly thinner and lighter cable for short runs. Make sure your connectors match the gauge you choose.

Plan the Total Length

Add up every run from the switch to each outlet. Leave a few extra metres at both ends for service loops and mistakes. One 305 metre roll usually covers a small office or a large home.

Buy Matching Accessories

Get Cat6 connectors, keystone jacks, a crimping tool and a cable tester. Cheap connectors can ruin the performance of good cable. You can find related items in our cables and converters section.

Easy Steps to Check Before You Order

First, measure every cable route from the switch to each outlet. Add a few extra metres for loops and mistakes.

Next, confirm your RJ45 connectors and keystone jacks accept 23 AWG solid wire. Thin-wire connectors may not grip this thicker copper.

Then, check that your switch or router has enough Gigabit ports for all the runs you plan. Each cable needs its own port.

Last, plan the route away from power lines and sharp metal edges. Use trunking or conduit where people walk.

What's in the Box

You get one roll of 305 metres of D-Link Cat6 UTP cable packed in a pull box. Connectors, jacks and tools are not included. Buy those separately.

When the box arrives, check the model code printed on it. Look at the jacket for cuts or crushed sections. Report any damage to us before you start pulling cable.

Why Buy From Megabuy BD?

Megabuy BD sells 100% authentic networking products at clear prices. You can pay with cash on delivery when the order reaches you. Our team helps in both Bangla and English before and after you order.

We deliver all over Bangladesh, including Thakurgaon, with Dhaka orders arriving in 24 to 48 hours. You can also browse more computer accessories for your network setup. Our support team can also help you pick matching items for a complete home or office network setup.

Frequently Asked Questions

What is the D-Link Cat6 23AWG UTP Cable 305m price in Bangladesh?

The latest price is shown at the top of this product page. Prices can change with stock and supplier rates. Check the page before you place your order, or ask our team for a quote. Bulk buyers can also contact us to confirm current availability.

Can this cable support Gigabit internet?

Yes, this Cat6 cable supports 1000BASE-T Gigabit Ethernet at 250MHz. Your actual speed also depends on your internet plan, router and connectors. Keep each run within 100 metres for reliable results. Test each link after crimping to confirm it works well.

Is this cable suitable for outdoor use?

This roll has a PVC jacket meant for indoor cabling. Direct sun and rain can damage a standard PVC jacket over time. For outside runs, use conduit or choose an outdoor rated cable. Ask our team if you are unsure which type fits your job.

Order From Megabuy BD

Check the latest D-Link Cat6 23AWG UTP Cable 305m price in Bangladesh and order from Megabuy BD today.
