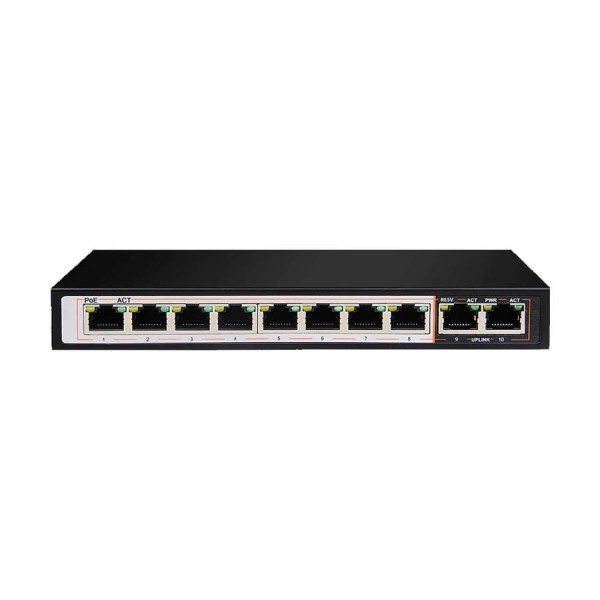

D-Link DGS-F1010P-E 10-Port Gigabit Unmanaged PoE Switch

D-Link DGS-F1010P-E 10-Port Gigabit Unmanaged PoE Switch Price in Bangladesh

Planning a CCTV system and checking the D-Link DGS-F1010P-E price in Bangladesh? The D-Link DGS-F1010P-E is a 10-port Gigabit switch with 8 PoE ports and 2 uplink ports. It sends both data and power through one network cable to each camera.

It is made for IP camera installers, shop owners, factories and offices with ceiling access points. PoE removes the need for a power socket next to every camera. The D-Link DGS-F1010P-E price in Thakurgaon is the same as our nationwide price.

Before you order, add up the power needs of all your PoE devices. The total budget is 96W, so check the wattage of each camera or access point. Also measure the longest cable run in your building.

Top Highlights

• 8 PoE Ports: 802.3af and 802.3at power up to 30W each.
• 96W Power Budget: Enough for several IP cameras or access points.
• 250m Long Reach: Extend mode powers devices far beyond normal distance.
• 2 Gigabit Uplinks: Connect your NVR and router at full speed.

About the D-Link DGS-F1010P-E 10-Port Gigabit Unmanaged PoE Switch

Power Over Ethernet Explained

PoE means the network cable carries electricity along with data. A PoE camera needs only one cable from the switch, with no separate adapter. This saves wiring work and keeps ceilings and walls neat.

Eight PoE and Two Uplink Ports

Ports 1 to 8 supply power to cameras, IP phones or access points. Ports 9 and 10 are Gigabit uplinks for your NVR, router or another switch. All ten ports support 10, 100 and 1000 Mbps speeds with auto MDI/MDIX.

Long Reach for Big Buildings

Normal Ethernet stops at about 100 metres of cable. The extend function on this switch powers devices up to 250 metres away at lower speed. That is useful for gate cameras, warehouses and long factory corridors.

Design & Performance

Design and Build

The switch has a compact black desktop body with no cooling fan inside. It weighs about 0.95 kg and sits easily inside a CCTV cabinet or on a shelf. LED lights above the ports show PoE and activity status for each port.

Power comes from an external 96W adapter connected at the back. The ports also have 6KV lightning protection to resist power surges on outdoor cable runs. This matters in Bangladesh, where storms and thunder are common during the monsoon.

Performance in Daily Use

The switch has a switching capacity of 20 Gbps and uses store-and-forward switching. Each Gigabit port can forward up to 1,488,000 packets per second. That is more than enough for eight HD camera streams going to one NVR.

A VLAN isolation mode keeps ports 1 to 8 apart from each other while they still reach the uplinks. A QoS feature gives priority to video traffic to keep recordings smooth. The switch also detects powered devices and can restart a stuck camera by cycling its power.

Who It's For

CCTV Installers and Shop Owners

An eight-camera IP system fits perfectly on this switch, with one uplink to the NVR. Installers save time because cameras need no local power points. Pair it with IP cameras from brands like Dahua for a complete system.

Offices With Ceiling Access Points

Ceiling Wi-Fi access points are hard to power from a wall socket. PoE lets one cable run to each access point from the network room. This gives stronger Wi-Fi in every room without messy adapters.

Factories, Warehouses and Campuses

Large sites have cameras on gates, fences and storage areas far from the office. The 250 metre extend mode covers long cable runs without extra switches. Surge protection also helps on cables that run outside the building.

Simple Buying Guide

Add Up Your Power Needs

Check the PoE wattage on each camera or access point datasheet. Keep the total below 96W, with some margin for safety. Pan-tilt cameras and heaters use more power than fixed cameras.

Use Good Copper Cables

PoE works best on pure copper Cat 6 or Cat 5e cable. Cheap copper-clad cable can heat up and drop power on long runs. Find suitable cables in our cables and converters range.

Keep Cameras Recording in Power Cuts

If the switch loses power, every camera goes dark at once. A UPS on the switch and NVR keeps recording during load shedding. Our mini UPS guide helps you pick backup power.

Easy Steps to Check Before You Order

First, confirm that your cameras, IP phones or access points support standard 802.3af or 802.3at PoE power.

Next, add up the wattage of all PoE devices and keep it under the 96W budget.

Then, measure each cable run, and plan to use extend mode for any run longer than 100 metres.

Last, check that your NVR or router has a free Gigabit port ready for the uplink connection to this switch.

What's in the Box

Our source lists the switch and a user manual in the package. The 96W external power adapter is needed to run it, so confirm its inclusion with our team before ordering. When the parcel arrives, check every item and the adapter label carefully.

Warranty

The D-Link DGS-F1010P-E comes with a 1 year warranty, according to our source. The power adapter is not covered by this warranty. Keep your invoice safe for any claim.

Why Buy From Megabuy BD?

Megabuy BD sells 100% authentic products with official warranty where it applies. We deliver all over Bangladesh, including Thakurgaon, and Dhaka orders usually arrive in 24 to 48 hours. Cash on delivery is available, so you pay when the switch reaches you.

Our team gives support in Bangla and English for installers and home users. Share your camera count and cable lengths, and we will help you check the setup. We want your CCTV project to work well from day one.

Frequently Asked Questions

What is the D-Link DGS-F1010P-E price in Bangladesh?

The latest D-Link DGS-F1010P-E price in Bangladesh is shown at the top of this product page. Prices can change with stock and market rates. Please check the page or contact our team before you order to confirm the current price.

How many IP cameras can this PoE switch power?

The switch has 8 PoE ports and a total power budget of 96W. Most fixed IP cameras use well under 12W, so eight cameras usually fit. Always check each camera's wattage and keep the total below 96W for safe and stable operation.

Does the DGS-F1010P-E need any configuration?

No, it is an unmanaged plug-and-play switch, so basic use needs no setup. Connect your cameras to ports 1 to 8 and your NVR to an uplink. Extend and VLAN isolation modes can be turned on when needed, as described in the user manual.
